Ampclamp 200

€119,00
Tax included. Shipping calculated at checkout.

Ampclamp 200

€119,00
Tax included. Shipping calculated at checkout.
Van De Velde EquipmentSKU: 430.200
Ampclamp 200
€119,00
Available to order online

Shipping costs are calculated at checkout. Ask about delivery options for heavy machines before ordering.

Estimated delivery: 5–7 business days. Ask us about availability and the exact delivery time.

Ask for advice on WhatsApp · Returns information

Pickup available at STATIONSSTRAAT 34

Collection after our confirmation. Please check availability first.

Payment
American Express
Apple Pay
BLIK
Google Pay
Klarna
Maestro
Mastercard
MobilePay
Satispay
Shop Pay
Union Pay
Visa

You pay using the payment methods offered at checkout.

Product overview

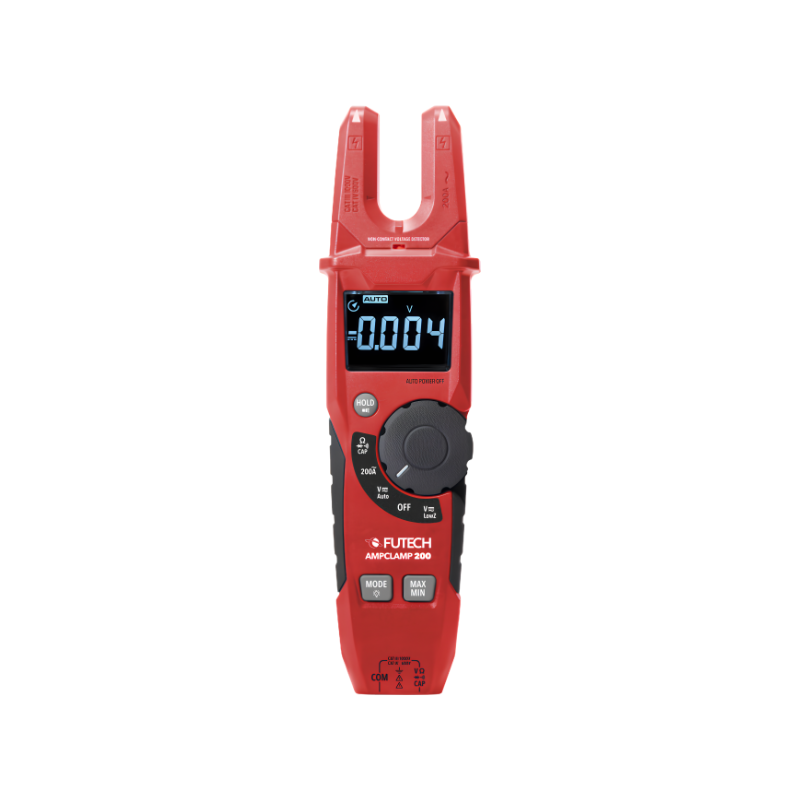

This versatile digital measuring instrument offers True RMS measurements for voltages up to 1000V and currents up to 200A. Thanks to the LCD display with 6000 counts, LED flashlight and automatic settings, it is ideal for accurate and safe electrical work in both professional and industrial applications.

  • Category: CAT III 1000V / CAT IV 600V

  • True RMS measurements – accurate for AC/DC

  • Voltage DC/AC: max. 1000V

  • Current DC/AC: max. 200A

  • Automatic range – user-friendly

  • LCD display (6000 counts) – clearly readable

  • LED flashlight – illuminates the measuring environment

  • Measuring functions: resistance (max. 60MΩ), capacitance (4000µF), frequency (9.999Hz–99.99kHz), diode test, continuity check (≤50Ω)

  • Data hold – hold values

  • Input impedance: 10MΩ (VDC & VAC)

  • Automatic shut-off – after 15 min.

  • Dust- and moisture-resistant – max. 80% humidity
Specifications
  • Measurement speed: 2/sec
  • Duty cycle: 10%–90%
  • Maximum current clamp opening: 35 mm
  • Power supply: 2x 1.5V AA batteries
  • Mains connection: None
  • LxWxH device: 40 x 80 x 244 mm
  • LxWxH packaging: 55 x 90 x 260 mm
  • Packaging weight: 0.48 kg
Applications

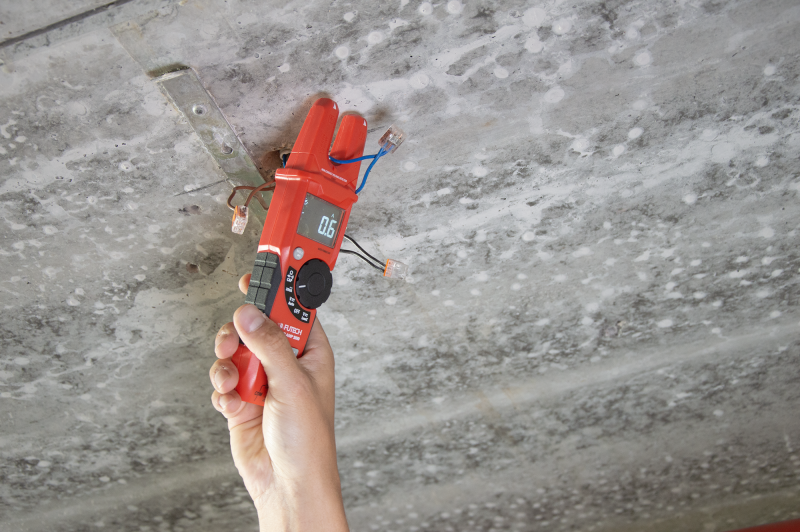

  • Electrical installations and maintenance – safely measure voltage, current, and resistance.
  • Troubleshooting and testing – suitable for continuity, diode, capacitance, and frequency.
  • Professional use – ideal for electricians, technicians, and technical personnel working on both domestic and industrial high-voltage systems.
  • Work safely in challenging conditions – thanks to automatic settings and a robust design.
Warranty and service

Do you have a question about a warranty or a repair? Contact Van De Velde Equipment and include the model, item number and your purchase details. We will help you assess your enquiry.
Product overview

This versatile digital measuring instrument offers True RMS measurements for voltages up to 1000V and currents up to 200A. Thanks to the LCD display with 6000 counts, LED flashlight and automatic settings, it is ideal for accurate and safe electrical work in both professional and industrial applications.

  • Category: CAT III 1000V / CAT IV 600V

  • True RMS measurements – accurate for AC/DC

  • Voltage DC/AC: max. 1000V

  • Current DC/AC: max. 200A

  • Automatic range – user-friendly

  • LCD display (6000 counts) – clearly readable

  • LED flashlight – illuminates the measuring environment

  • Measuring functions: resistance (max. 60MΩ), capacitance (4000µF), frequency (9.999Hz–99.99kHz), diode test, continuity check (≤50Ω)

  • Data hold – hold values

  • Input impedance: 10MΩ (VDC & VAC)

  • Automatic shut-off – after 15 min.

  • Dust- and moisture-resistant – max. 80% humidity
Specifications
  • Measurement speed: 2/sec
  • Duty cycle: 10%–90%
  • Maximum current clamp opening: 35 mm
  • Power supply: 2x 1.5V AA batteries
  • Mains connection: None
  • LxWxH device: 40 x 80 x 244 mm
  • LxWxH packaging: 55 x 90 x 260 mm
  • Packaging weight: 0.48 kg
