SILENT 705/270 - 13Bar

€3.699,00
Tax included. Shipping calculated at checkout.

SILENT 705/270 - 13Bar

€3.699,00
Tax included. Shipping calculated at checkout.
Van De Velde EquipmentSKU: 27206
SILENT 705/270 - 13Bar
€3.699,00
Available to order online

Shipping costs are calculated at checkout. Ask about delivery options for heavy machines before ordering.

Estimated delivery: 5–7 business days. Ask us about availability and the exact delivery time.

Ask for advice on WhatsApp · Returns information

Pickup available at STATIONSSTRAAT 34

Collection after our confirmation. Please check availability first.

Payment
American Express
Apple Pay
BLIK
Google Pay
Klarna
Maestro
Mastercard
MobilePay
Satispay
Shop Pay
Union Pay
Visa

You pay using the payment methods offered at checkout.

Product overview

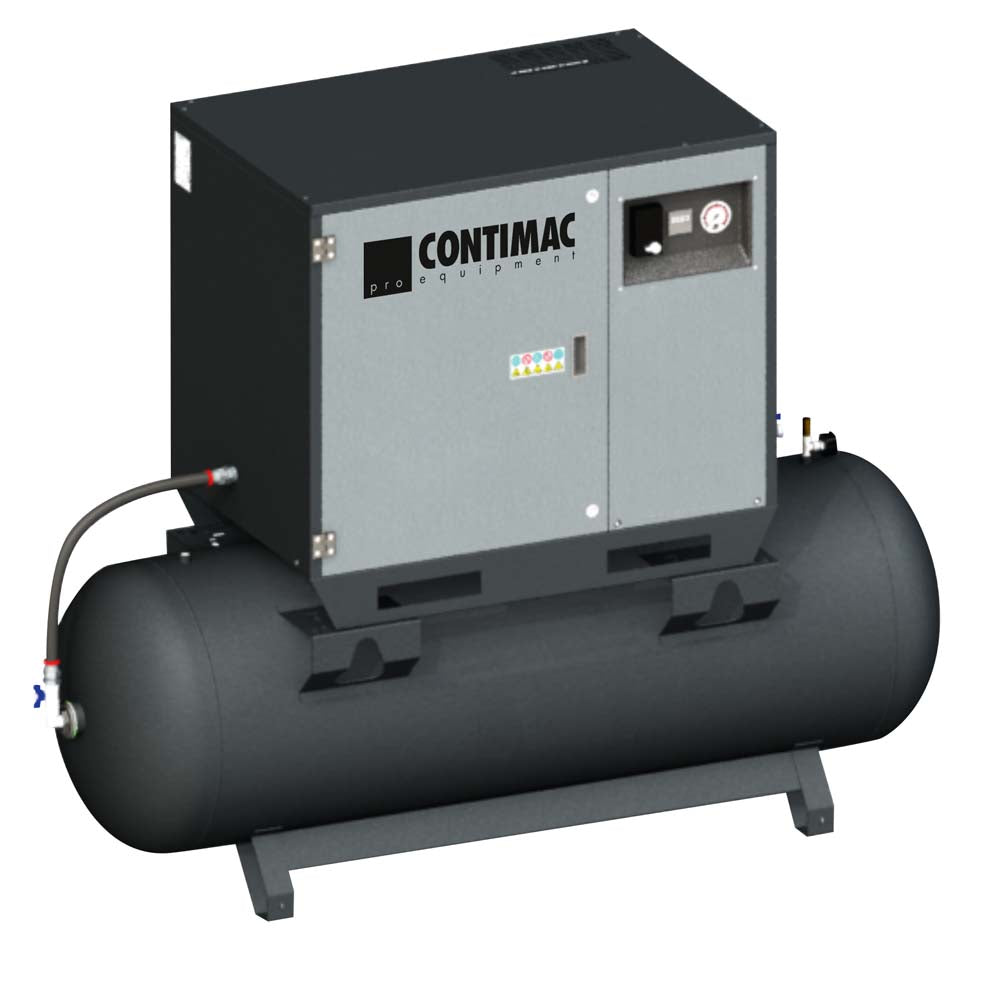

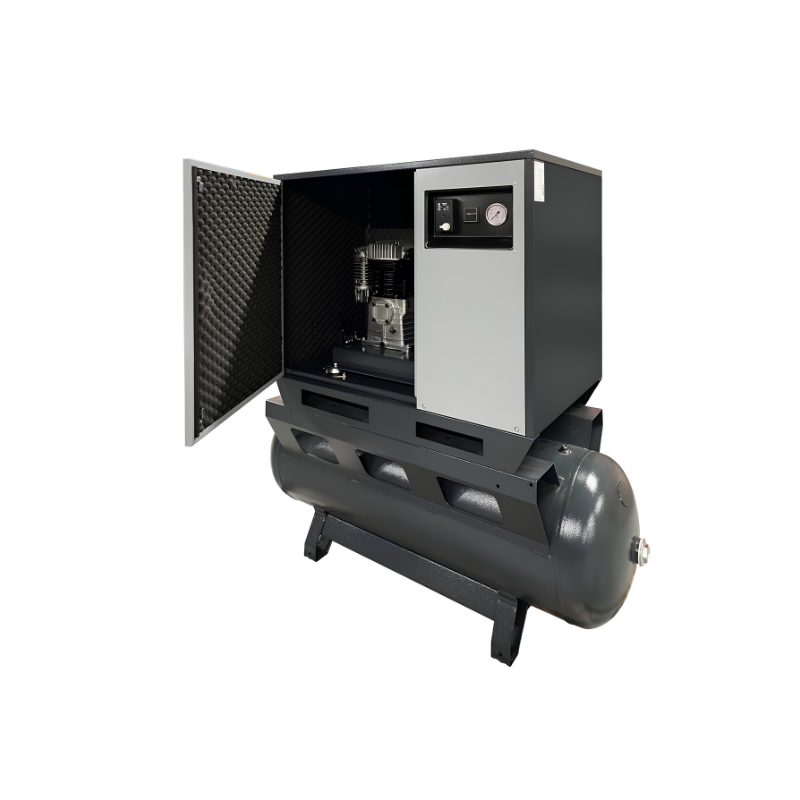

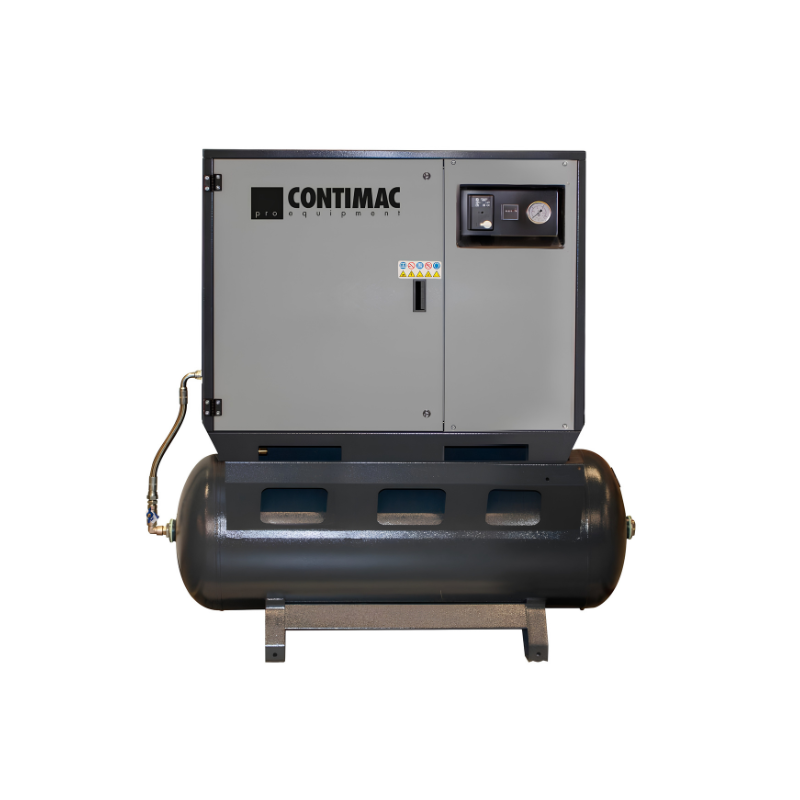

Low-noise belt-driven 2-stage piston compressor with a 270-litre tank at 3-400 V. Ideal for installation in the immediate work environment. Extremely quiet piston compressor at less than 68 dB (A). Equipped with a Heavy Duty K28 compressor head with an intercooler and aftercooler. Higher efficiency thanks to the 2-stage compression. Lower temperature of compressed air after the aftercooler, resulting in less condensate in the tank. Equipped with a powerful 5.5 hp induction motor on mains electricity. Features a clear and easy-to-read control panel.

  • Low-noise belt-driven 2-stage piston compressor

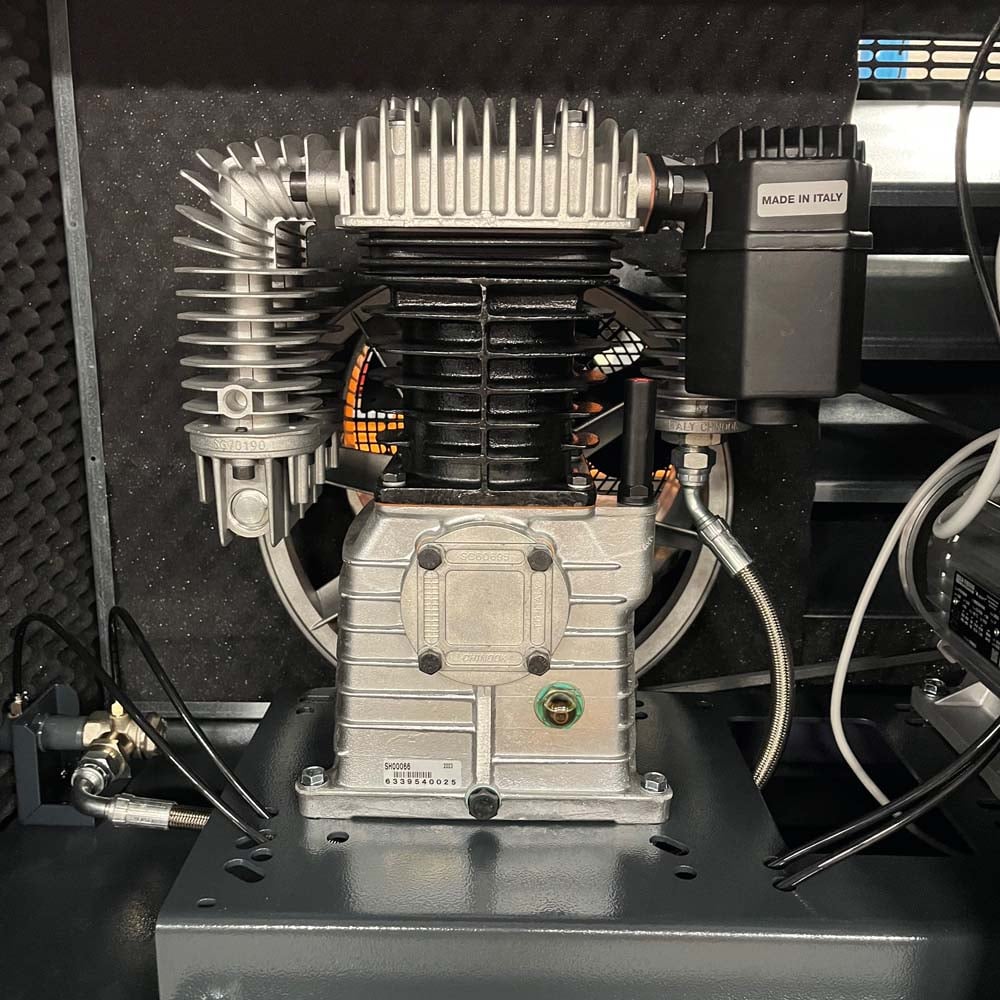

  • Heavy Duty K28 compressor head with an intercooler and aftercooler

  • Higher efficiency thanks to 2-stage compression

  • Lower temperature of compressed air after the aftercooler

  • Powerful 5.5 hp induction motor

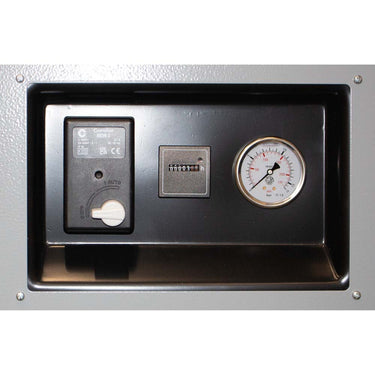

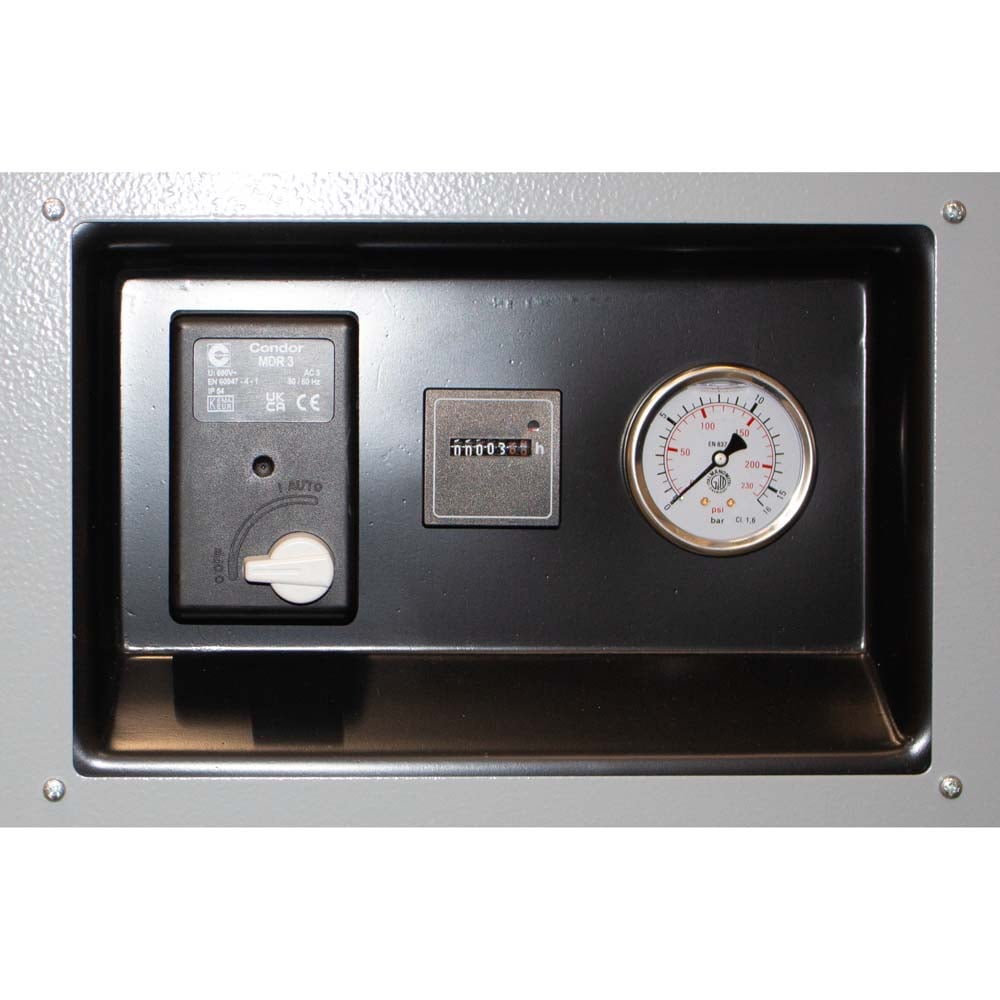

  • Clear and easy-to-read control panel

  • High maximum pressure up to 13 bar

  • Ideal for maintenance workshops

  • Mounted on "Silent" blocks
Specifications
  • Power supply: 3-400V
  • Air input: 600 l/min
  • Max. pressure: 15 bar
  • Tank: 270 Liters
  • Speed: 1000 rpm
  • Noise level: 68 dB(A)
  • Motor power: 5.5 HP
  • Circuit breaker (slow): 20 A
  • Number of cylinders: 2 in line
  • Aftercooler: yes
  • 2-stage: yes
  • Thermal protection: yes
  • Length: 1458 mm
  • Width: 670 mm
  • Height: 1575 mm
Applications
  • Maintenance and industrial workshops
  • Direct use in the work environment
  • Applications where noise reduction is important
  • Applications with high pressure requirements up to 13 bar
  • Suitable for industrial production processes and compressed air systems
Warranty and service

Do you have a question about a warranty or a repair? Contact Van De Velde Equipment and include the model, item number and your purchase details. We will help you assess your enquiry.
Product overview

Low-noise belt-driven 2-stage piston compressor with a 270-litre tank at 3-400 V. Ideal for installation in the immediate work environment. Extremely quiet piston compressor at less than 68 dB (A). Equipped with a Heavy Duty K28 compressor head with an intercooler and aftercooler. Higher efficiency thanks to the 2-stage compression. Lower temperature of compressed air after the aftercooler, resulting in less condensate in the tank. Equipped with a powerful 5.5 hp induction motor on mains electricity. Features a clear and easy-to-read control panel.

  • Low-noise belt-driven 2-stage piston compressor

  • Heavy Duty K28 compressor head with an intercooler and aftercooler

  • Higher efficiency thanks to 2-stage compression

  • Lower temperature of compressed air after the aftercooler

  • Powerful 5.5 hp induction motor

  • Clear and easy-to-read control panel

  • High maximum pressure up to 13 bar

  • Ideal for maintenance workshops

  • Mounted on "Silent" blocks
Specifications
  • Power supply: 3-400V
  • Air input: 600 l/min
  • Max. pressure: 15 bar
  • Tank: 270 Liters
  • Speed: 1000 rpm
  • Noise level: 68 dB(A)
  • Motor power: 5.5 HP
  • Circuit breaker (slow): 20 A
  • Number of cylinders: 2 in line
  • Aftercooler: yes
  • 2-stage: yes
  • Thermal protection: yes
  • Length: 1458 mm
  • Width: 670 mm
  • Height: 1575 mm
